stand cuvette with lid

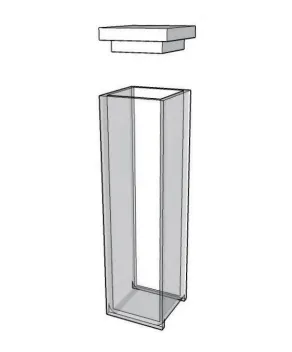

standard cuvette with lid
standard cuvette with lid is suitable for various spectrophotometers, the matched teflon lid can prevent solvent from the leakage and also strength corrosion resistance.

ES quartz glass: 190nm-2500nm
IR quartz glass: 250nm-3500nm
Optical glass: 340nm-2500nm

Code  Code  Code  Dimensions(mm)  Path length Path width Volume
Q1      I1       G1      45X12.5X3.5        1mm           10mm          0.35ml
Q2      I2       G2      45X12.5X4.5         2mm          10mm          0.70ml
Q3      I3       G3      45X12.5X7.5         5mm          10mm          1.70ml
Q4      I4       G4      45X12.5X12.5      10mm        10mm           3.50ml
Q5      I5       G5      45X12.5X22.5       20mm       10mm           7.0ml
Q6      I6       G6      45X12.5X32.5       30mm       10mm           10.5ml
Q7      I7       G7      45X12.5X42.5       40mm       10mm           14ml
Q8      I8       G8      45X12.5X52.5       50mm       10mm           17.5ml
Q9      I9       G9      45X12.5X102.5     100mm     10mm           35ml
