semi-micro cuvette with black walls and lid-5mm

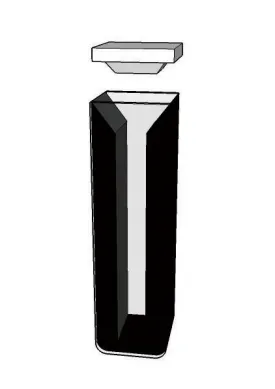

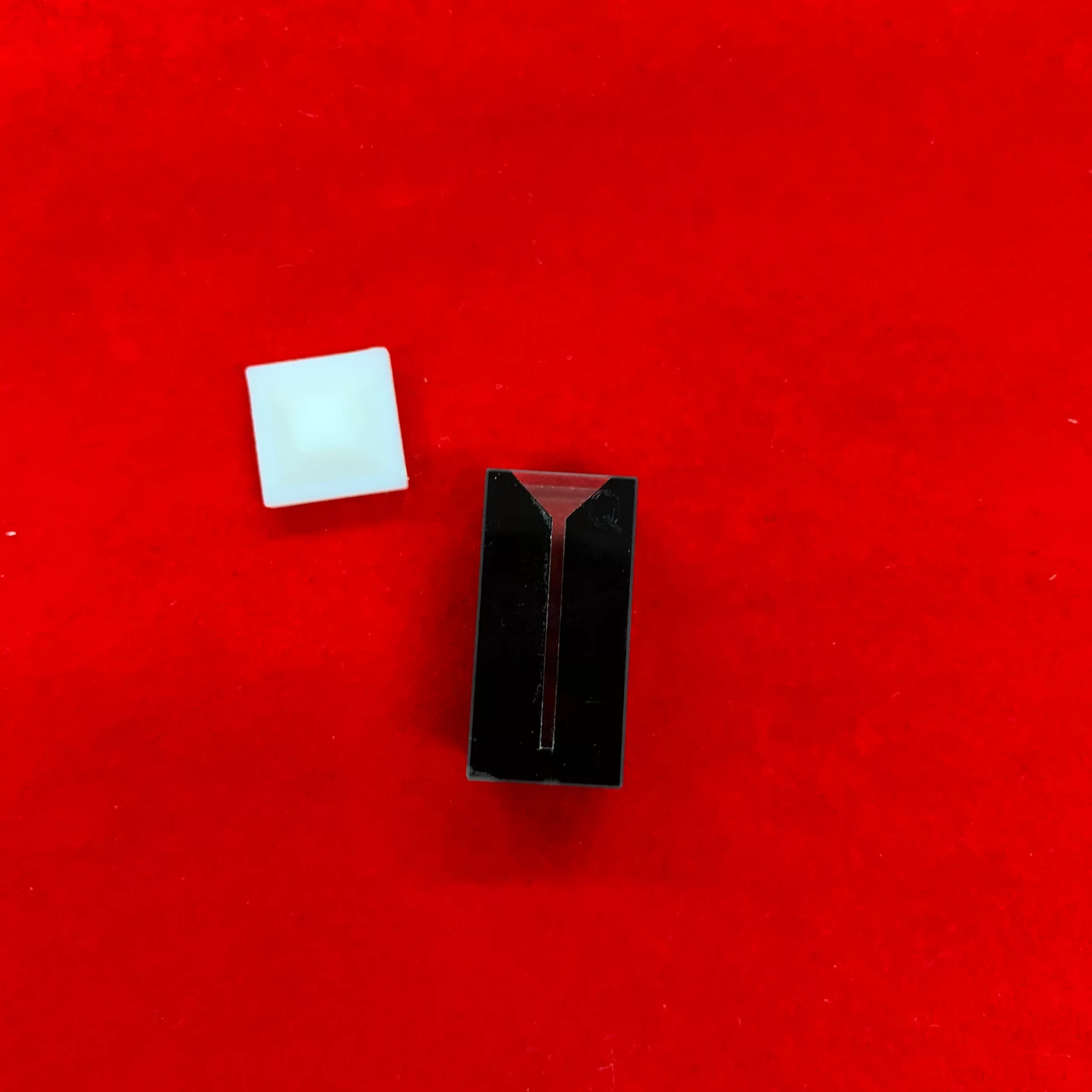

semi-micro cuvette with black walls and lid
the semi-micro cuvette is made of black and clear quartz, partly avoids light and saves solvent
ES quartz glass: 190nm-2500nm
IR quartz glass: 250nm-3500nm
Optical glass: 340nm-2500nm
Code  Code  Code  Dimensions(mm)  Path length Path width Volume
Q143     I143       G143       45X12.5X7.5          5mm           5mm         0.85ml
Q144     I144       G144       45X12.5X12.5        10mm         5mm         1.75ml
Q145     I145       G145       45X12.5X22.5        20mm         5mm         3.5ml
Q146     I146       G146       45X12.5X32.5        30mm         5mm         5.25ml
Q147     I147       G147       45X12.5X42.5        40mm         5mm         7.0ml
Q148     I148       G148       45X12.5X52.5        50mm         5mm         8.75ml
Q149     I149       G149       45X12.5X102.5      100mm       5mm         17.5ml
